Movable Forming System
For lower capacity production requirements of high quality-graded single-layer particleboard. CMC-Texpan movable wind matformers intermittently spread a complete, even particle mat. Glue-coated particles for the panel core and surfaces are fed into the former, which then separates the particles through an air stream and deposits them onto a supporting belt which is kept stationary during the spreading action.
The uniform movement of the matformer itself spreads the furnish in sequence: first, finer particles for the panel surface, then the coarser chips for the panel core, and then gradually finer material again. At the end of the forming stroke, the supporting belt advances the freshly formed mat toward the press, while the matformer quickly returns to its initial position.
CMC TEXPAN FM Movable Wind Matformer
The FM Single Head Movable Matformer is equipped with:
- a particles feeding conveyor system
- a single dosing chamber a forming chamber with two opposed rows of blowersa movable, wheel-mounted trolley supporting structure running on rails, powered by either electric or hydraulic drive system
*finished board width of 2600 mm

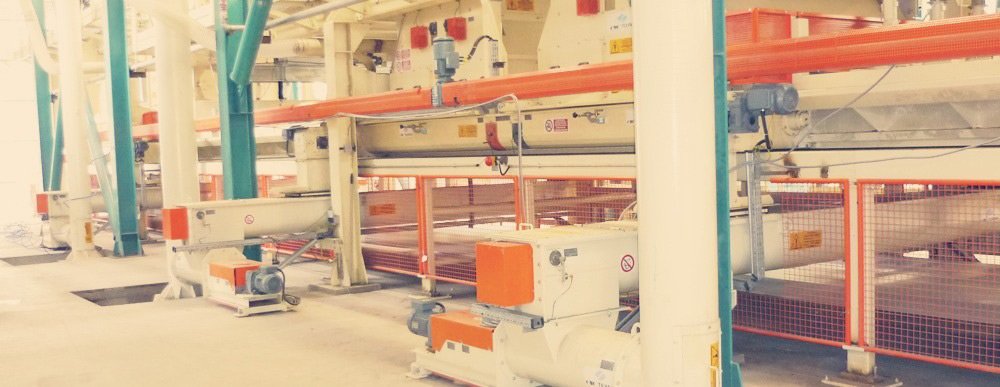

FM Single Head Movable Matformer and Forming Line
CMC TEXPAN FM2 Movable Wind Matformer
The FM2 Double Head Movable Matformer is equipped with:
- a particles feeding conveyor system
- two separate dosing chambers
- two forming chambers, each with a single row of blowers
- a movable, wheel-mounted trolley supporting structure running on rails, powered by either an electric or hydraulic drive system
*finished board width of 2600 mm
FM Double Head Movable Matformer and Forming Line
